Construction: 1.Conductor:Tinned Copper, according to the VDE 0295/IEC 60228, Class 5. 2.Insulation: Polyolefin copolymer electron-beam cross-linked. 3.Outer Sheath: Polyolefin copolymer electron-beam cross-linked. 4.Sheath Color: Black/Red/Blue or as per customer's request. Test Voltage: 3.5 KV Standard: TUV

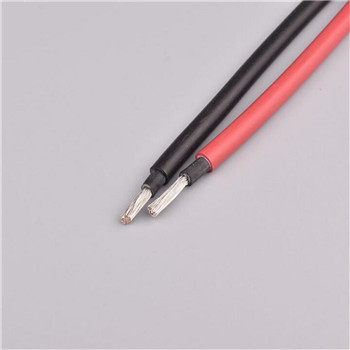

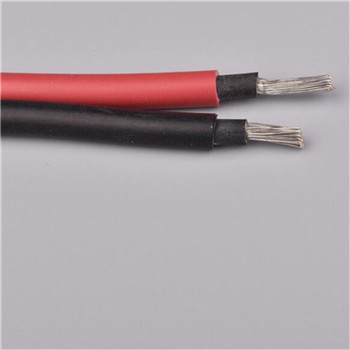

1500V DC 4mm2,6mm2 tinned flexible copper xlpo insulated xlpo sheathed solar cable with EN50618 Standard
Application:
For the cabling between the solar modules and as extension cable between the module strings and the DC/AC inverter
Standard:
Cross-linked solar cables - type H1Z2Z2-K, certified according to EN 50618
Product features:
Flame retardant,Weather/UV-resistant,Ozone-resistant,Good notch and abrasion resistance
Cable Construction:
Conductor : Fine Wire Tinned Copper Conductor according to BS EN 50618 cl. 5.
Insulation : UV resistant, cross linkable, halogen free, flame retardant compound for core insulation.
Core Identification : Red, black or natural
Sheath : UV resistant, cross linkable, halogen free, flame retardant compound for Sheath over insulation.
Cable Colour : Black or Red,Blue
Benefits:
1.Reduction of flame propagation and of toxic combustion gases in the event of fire
2.Robust against mechanical impacts
3.For outdoor applications
4.Service Life: Expected life span ≥25 years

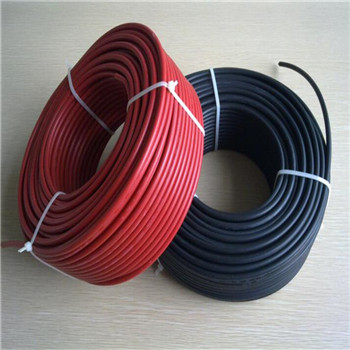

1500V DC 4mm2,6mm2 tinned flexible copper xlpo insulated xlpo sheathed solar cable with EN50618 Standard
Single-Core Solar Cable | |||||
Cable Size (mm2) | Conductor Strand (mm) | Nominal insulation thickness (mm) | Nominal sheath thickness (mm) | Overall Dia (mm) | Max. Conductor Resis(20ºC) (Ω/Km) |
1×2.5 | 49/0.25 | 0.8 | 0.8 | 5.4±0.3 | 8.21 |
1×4 | 56/0.30 | 0.8 | 0.9 | 6.2±0.3 | 5.09 |
1×6 | 84/0.30 | 0.8 | 0.9 | 6.8±0.3 | 3.39 |
1×10 | 84/0.40 | 1.0 | 1.0 | 9.0±0.3 | 1.95 |
1×16 | 126/0.40 | 1.0 | 1.0 | 10.0±0.3 | 1.24 |
1×25 | 196/0.40 | 1.2 | 1.2 | 12.2±0.5 | 0.795 |
1×35 | 276/0.40 | 1.2 | 1.2 | 13.6±0.5 | 0.565 |
Twin Core Solar cable | |||||
Cable Size (mm2) | Conductor Strand (mm) | Nominal insulation thickness (mm) | Nominal sheath thickness (mm) | Overall Dia (mm) | Max. Conductor Resis(20ºC) (Ω/Km) |
2×2.5 | 49/0.25 | 0.7 | 0.8 | 5.0±0.3×10.6±0.3 | 8.21 |
2×4 | 56/0.30 | 0.8 | 0.9 | 6.2±0.3×13.8±0.3 | 5.09 |
2×6 | 84/0.30 | 0.8 | 1.0 | 7.2±0.3×15.3±0.3 | 3.39 |
2×10 | 84/0.40 | 1.0 | 1.0 | 9.0±0.3×19.2±0.3 | 1.95 |
